Introduction
The gear manufacturing industry frequently grapples with delayed deliveries, cost overruns, and quality inconsistencies. This is particularly acute in rapid prototyping, where traditional methods introduce significant project risks. The core issue lies in the lack of integrated online tools and refined processes, making it difficult for manufacturers to monitor progress in real-time and leading to inefficient traditional solutions.
This article solution involves introducing advanced Precision Manufacturing Services and digital systems that optimize gear machining through data-driven approaches, enabling rapid response and risk control. The following sections will analyze key strategies to systematically enhance machining efficiency.
How Does an Online Quoting System Accelerate Cost and Time Estimation for Gear Machining?
An Online Quoting System is a transformative tool that provides instant quotations for gear machining, drastically reducing manual errors and delivery delays. By integrating with Precision Manufacturing Services, these digital platforms allow engineers to upload CAD files, select materials like aluminum or steel, and receive a detailed quote within minutes. The system’s algorithms analyze design complexity, material costs, and machining time, providing a high level of data accuracy. This process eliminates the back-and-forth communication typical of traditional quoting, which can delay projects by days or even weeks.
The efficiency of an online system is bolstered by standardized processes aligned with international benchmarks, such as those from the International Organization for Standardization (ISO) for quality management systems , which emphasize process consistency to shorten lead times. By streamlining the initial planning phase, online quoting ensures a faster transition to production, supporting efficient Custom Parts Production and mitigating the risk of scheduling overruns from the very beginning.

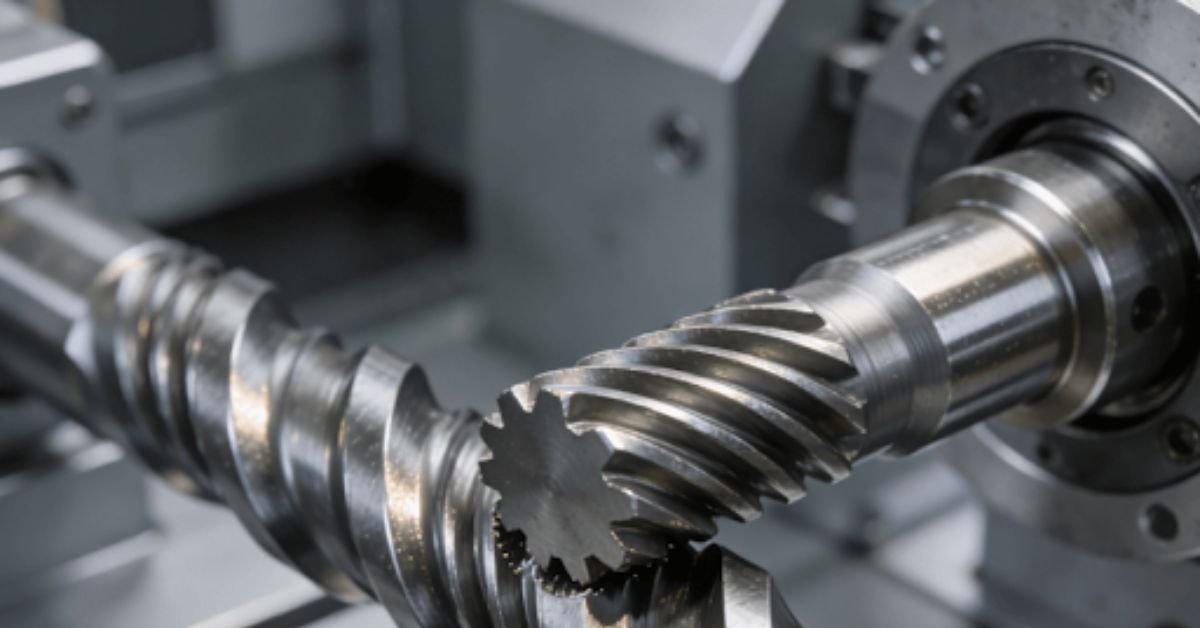

What Precision Challenges Does Helical Gear Milling Face in High-Speed Applications?
Helical Gear Milling is favored for high-speed applications due to its smooth operation and high load capacity. However, achieving the required precision presents significant challenges, primarily concerning tooth profile accuracy, helix angle control, and vibration suppression at high rotational speeds.
Key Technical Hurdles in High-Speed Machining
The primary obstacles involve maintaining geometric accuracy under dynamic loads. Imperfections in the gear cutting process on milling machine can lead to noise, premature wear, and failure.
- Controlling the Helix Angle and Tooth Profile
Precise control of the helix angle is critical for proper meshing. Even minor deviations can cause uneven load distribution and increased noise. Advanced 5-axis CNC machining centers are essential to maintain helix angle accuracy within ±0.05°. Similarly, the tooth profile must be machined to exact specifications to ensure continuous smooth contact between gears.
- Managing Vibration and Thermal Deformation
At high speeds, vibrations (chatter) can compromise surface finish and dimensional accuracy. Furthermore, the heat generated during machining can cause thermal deformation of the workpiece. Effective vibration damping systems and high-pressure cooling are necessary to mitigate these effects. The challenges and standards for such precision are well-documented by theAmerican Gear Manufacturers Association (AGMA) in their reports on gear accuracy standards . For a deeper dive into solutions, one can refer to a detailed Helical Gear Milling Guide .
The Case of Double Helical Gears
A specific example is the double helical gear, which features two opposing sets of helical teeth to cancel out axial thrust. The primary challenge is ensuring perfect symmetry between the left and right helical profiles. Any asymmetry can lead to imbalanced loads and catastrophic failure. This requires specialized fixtures and in-process measurement systems to control symmetry errors within 0.01mm.
Solutions through Advanced Technology
Overcoming these challenges hinges on using high-precision CNC milling machines, selecting appropriate cutting tools, and optimizing cutting parameters. Process maturity and expert oversight are crucial for achieving the necessary surface finish and dimensional stability for high-performance applications.
How Does Gear Cutting Tools Selection Impact Product Compliance and Certification Requirements?
The selection of gear cutting tools is a critical factor that directly influences the final product’s quality, durability, and its ability to meet stringent industry certifications. Tools such as hobs, shapers, and milling cutters define the gear’s surface finish, tooth accuracy, and material integrity. High-quality, coated carbide tools, for instance, produce superior surface finishes and longer tool life, which are essential for gears subjected to high loads and cyclic stresses. This inherent quality supports compliance with international standards like ISO 9001 and IATF 16949, which mandate consistent output and traceability.
The choice among different types of gear cutting (e.g., hobbing for high volume, shaping for internal gears) must align with the desired quality level. Using subpar tools can lead to surface imperfections that fail rigorous quality checks, jeopardizing certification audits. Therefore, partnering with a manufacturer that utilizes high-performance tools and has robust Precision Manufacturing Services is a strategic decision to ensure products meet regulatory requirements for industries like automotive (IATF 16949) or aerospace (AS9100D), thereby mitigating compliance risks.
What are the Special Processes and Efficiency Optimization Strategies for Double Helical Gear Machining?
Machining a double helical gear involves unique complexities that demand specialized strategies to ensure efficiency and quality. The central challenge is machining two symmetrical helical profiles that meet exacting precision standards.
Specialized Machining and Tooling Requirements
Producing a double helical gear requires a high-precision helical gear cutting machine with advanced CNC capabilities. The machine must maintain perfect synchronization between the cutting operations for the left-hand and right-hand helices. Specialized tooling, such as angle milling cutters, is used, and the tool path must be meticulously programmed to avoid interference between the tool and the workpiece, especially in the central groove (gap) between the two helices.
Optimizing the Gear Cutting Process on a Milling Machine
Efficiency in the gear cutting process on milling machine for double helical gears is achieved through several strategies. High-speed cutting technology can reduce machining time by up to 40%. Furthermore, implementing a Design for Manufacturability (DFM) approach early in the design phase can help optimize non-critical tolerances, select standard module sizes, and specify suitable root fillets, all of which contribute to a more efficient and cost-effective manufacturing process without compromising the gear’s functional performance.
Ensuring Symmetry and Quality Control
The most critical aspect is ensuring symmetry. This is managed through custom fixtures that securely hold the workpiece and real-time measurement systems that verify the geometry during machining. Post-machining, the gears are inspected on gear measuring machines to confirm that the symmetry error is within the tight tolerance of 0.01mm or less, ensuring balanced operation and long service life.
How to Leverage Local Services for Rapid Response and Risk Control in Gear Machining?
Utilizing local services, often located by searching gear cutting near me, offers significant advantages in rapid response and supply chain risk control. This approach is crucial for Rapid Prototyping Solutions and time-sensitive production runs.
Advantages of Proximity and Communication
Geographical proximity drastically reduces logistics time, enabling faster delivery of prototypes and production parts. It also facilitates clearer and more timely communication. Engineers can more easily visit the facility for face-to-face discussions, leading to better collaboration and quicker resolution of any design or manufacturing issues that arise.
Integrating Local Services with Digital Tools
The true potential of local suppliers is unlocked when combined with digital tools. Many modern Precision Manufacturing Services offer online platforms for instant quoting and order tracking.
- Streamlined Quoting and Order Management
An online custom gear machining portal allows engineers to get immediate pricing and lead time estimates, making the supplier selection process faster and more data-driven. This digital integration ensures transparency and allows for real-time project monitoring.
- Enhanced Risk Mitigation
A local supply chain is less vulnerable to global disruptions, such as shipping delays or port congestion. This mitigates a significant risk to project timelines. Furthermore, smaller, more manageable shipping batches reduce the financial impact of potential quality issues, as rectifications can be handled more swiftly.
Sourcing High-Quality CNC Machining Parts
When seeking local partners for CNC Machining Parts, key evaluation criteria include technical equipment, quality certifications, manufacturing expertise, and proven experience with similar projects. A capable local provider will have advanced machinery, relevant ISO certifications, and a portfolio of successful case studies, ensuring they can deliver the required quality and precision.
Conclusion
This article has systematically analyzed the integration of gear machining with advanced manufacturing services, demonstrating that leveraging digital tools and precision technologies can significantly shorten lead times and reduce project risks. By adopting these strategies, manufacturers can achieve greater efficiency and reliability in their operations. To optimize your next gear machining project, it is recommended to explore professional solutions and obtain a customized quotation.
